Adapter MHL 3.0 to HDMI with RCP

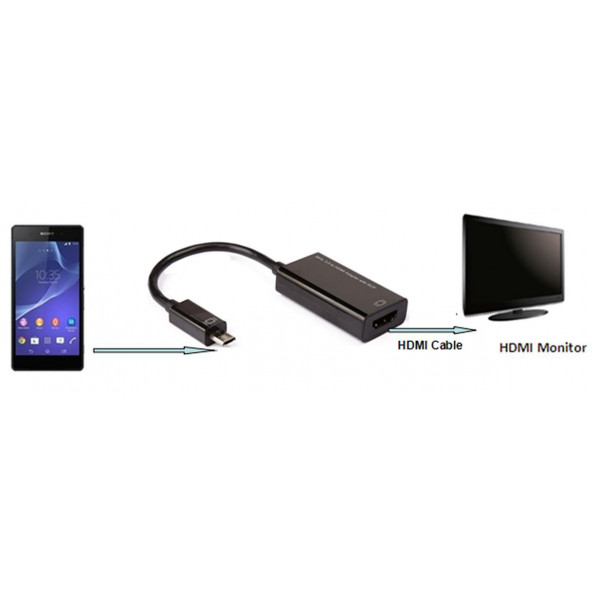

• Adapter MHL 3.0 to HDMI with RCP lets you connect a Sony Xperia Z2 or other compatible devices MHL 3.0 to ‘HDTV to display the content on the big screen
• Allows you to connect your MHL Host Host to the HDMI port on your monitor or TV via the Micro USB port
• Support CPR function (Remote Control Protocol), lets you use your HDTV remote control to operate with the Sony Xperia Z2 through the CEC of HDTV function
• Connects Micro USB Female port to charge or power using a Micro USB cable to USB M / M
• Supports all frequency bands from 25-150MHz
• Supports highest video resolution 4Kx2K @ 30Hz with 24-bit RGB / YCbCr 4: 4: 4 / YCbCr 4: 2: 2 and supports 4Kx2K @ 60Hz with 12-bit YCbCr 4: 2: 0
• Small and light, also suitable for travel and presentations
• Supports up to 1080p @ 60Hz 3D
• Supports high resolution video format VESA modes up to QSXGA @ 60Hz
• Supports Inter-chip connection (HSIC). Implements TDM hybrid HSIC data and commands Legacy CBUS clock differential. The differential clock is fixed at 150 MHz. The supported HSIC interface is compatible with USB 2.

Connections

• Entry: MHL3.0 (5Pin) x1
• Output: HDMI Female x1
• Other port: Micro USB Female x1 (for recharging)

Environmental Features

• Operating Temperature: 0-70 ° C
• Storage temperature: -10 – 80 ° C
• Operating Humidity: 10% – 85% (non-condensing)
• Storage Humidity: 5% – 90% (non-condensing)

Dimensions

• Width: 185 mm
• Depth: 26 mm
• Height: 12 mm
• Weight: 18.5 g

Certifications

• EC
• FCC

Package Contents

• HDMI cable converter MHL3.0
• User manual
